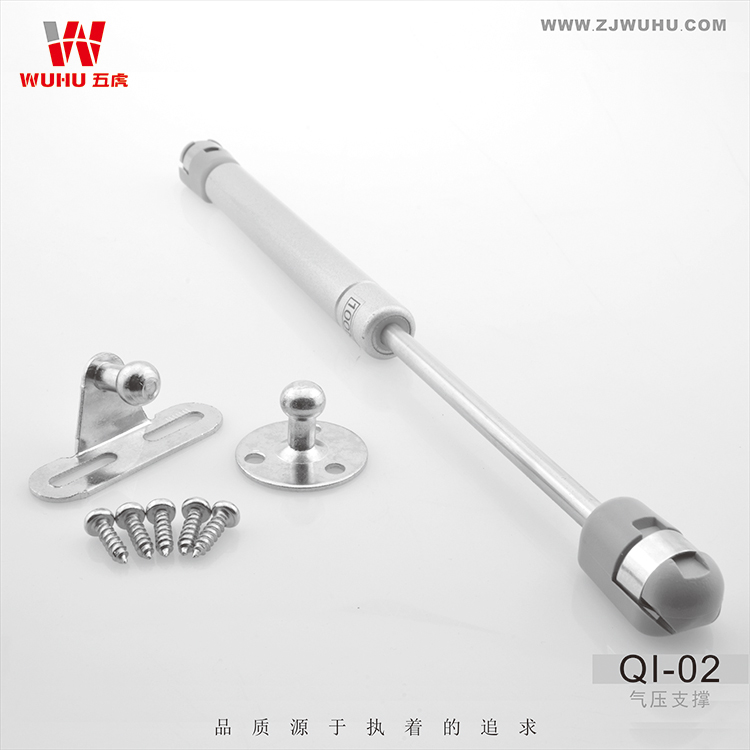

QI02

PRECISON SEAMLESS TUBE

QI02

PRODUCT DETAILS

SPECIFICATION

Technical parameters
SIZE(inch)	Total length(mm)	Center distance(mm)	Length(mm)	Distance(mm)
6	185	163	80	52
8	195	180	87	55
10	268	245	120	90
12	300	278	137	107

Bearing capacity
Door length(mm)	450				600				900				1200
Door height(mm)	Door weight(kg)	Quantity	Length(mm)	Force(N)	Door weight(kg)	Quantity	Length(mm)	Force(N)	Door weight(kg)	Quantity	Length(mm)	Force(N)	Door weight(kg)	Quantity	Length(mm)	Force(N)
300-350	1.6-1.8	1	245	60	2.1-2.5	1	245	80	3.2-3.7	1	245	100	4.2-4.9	1	245	120
351-400	1.8-2.1	1	245	80	2.5-2.8	2	245	40	3.7-4.2	2	245	50	4.9-5.6	2	245	60
401-450	2.1-2.4	1	245	40	2.8-3.2	2	245	50	4.2-4.7	2	245	60	5.7-6.4	2	245	80
451-500	2.4-2.6	2	245	50	3.2-3.5	2	245	60	4.7-5.3	2	245	80	-	-	-	-
501-550	2.6-2.9	2	245	60	3.5-3.9	2	245	70	-	-	-	-	-	-	-	-
